Function of Fiber Optic Junction Boxes and Connectors

Fiber optic junction boxes and connectors are essential for organizing, protecting, and ensuring efficient signal transmission in fiber optic networks.Fiber Optic Junction Boxes

Fiber optic junction boxes are protective enclosures where optical fibers converge, split, or terminate, serving as central points for managing fiber connections and ensuring network reliability . Their main functions include:

• Protection: They shield delicate optical fibers from environmental hazards such as dust, moisture, temperature fluctuations, and physical damage, which can degrade signal quality .
• Organization: Junction boxes provide structured cable management through splice trays, cable entry/exit points, and spooling mechanisms, preventing tangling and maintaining proper bend radii .
• Distribution and Termination: They facilitate the connection and distribution of fibers to different network segments, supporting both direct and bypass connections .
• Maintenance and Expansion: Junction boxes allow easy access for inspection, repair, or network expansion without disrupting the entire system . Types of Junction Boxes:
• Wall-Mount: Indoor or outdoor use, protecting fibers while mounted on vertical surfaces .
• Rack-Mount: Designed for data centers, supporting high-density terminations in standard racks .

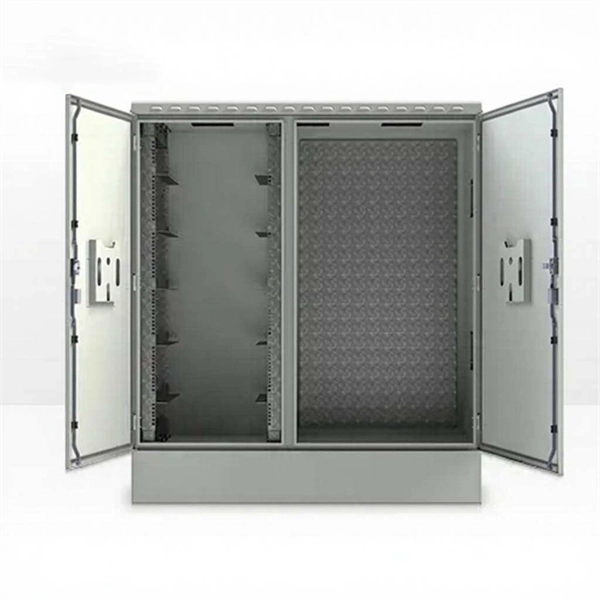

• Outdoor and Pedestal Boxes: Rugged designs for FTTH deployments or underground installations, resistant to harsh environmental conditions .
• Dome and Compact Boxes: Specialized for aerial, underground, or space-constrained applications .

Fiber Optic Connectors

Fiber optic connectors are precision components that join optical fibers or connect fibers to devices like transceivers or patch panels . Their key functions include:

• Alignment: Connectors ensure sub-micron alignment of fiber cores, minimizing insertion loss and signal reflection .
• Signal Transmission: They maintain high-quality optical signal transfer while allowing temporary or reconfigurable connections, unlike permanent fusion splices .
• Protection and Maintenance: Connectors shield fiber ends from dust, scratches, and oils, and allow easy cleaning and replacement .
• Versatility: They enable rapid network setup, upgrades, and reconfiguration, supporting scalability in telecom, data centers, and industrial networks . Common Connector Types:
• SC (Subscriber Connector): Square-shaped, push-pull mechanism, widely used in telecom and data centers .
• LC (Lucent Connector): Small form factor with latch mechanism, ideal for high-density applications .

Summary

Together, fiber optic junction boxes and connectors ensure the integrity, reliability, and efficiency of fiber optic networks. Junction boxes manage and protect fiber distribution, while connectors provide precise, low-loss, and maintainable connections, enabling seamless communication across telecommunications, data centers, residential, and industrial applications .
