How to identify fiber optic cable junction boxes

Fiber optic junction boxes can be accurately located using a combination of route inspection, optical testing tools, and proper documentation of cable paths.Understanding Fiber Optic Junction Boxes

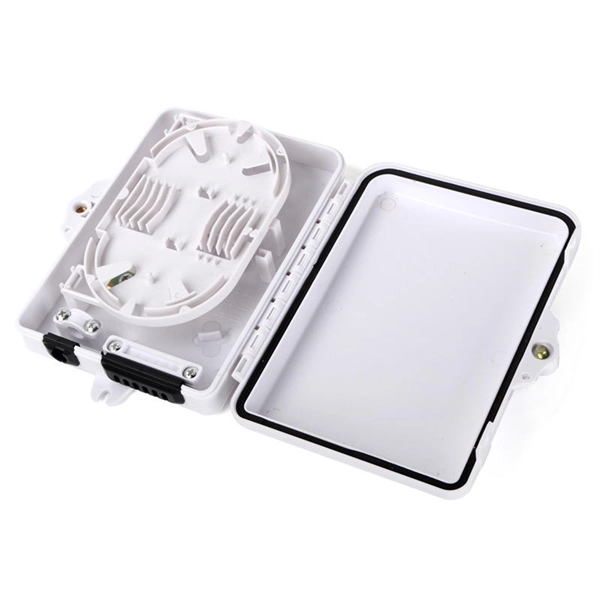

A fiber optic junction box, also called a termination or distribution box, is a protective enclosure that organizes and connects optical fibers. These boxes are used in residential, industrial, and telecommunication networks to manage fiber connections efficiently and protect them from environmental factors . They can be wall-mounted indoors, rack-mounted in data centers, or installed on towers or poles for outdoor networks .

Steps to Locate Junction Boxes

1. Route Inspection
   • Walk along the cable route to visually inspect for junction boxes, which may be mounted on walls, poles, or inside ducts .
   • Check for metallic markers or tags near buried fiber cables, as non-metallic fiber cables are difficult to detect without them .
   • For overhead or tower-mounted boxes, note the typical installation height (e.g., 8–10 meters for OPGW boxes) and location on the structure .
2. Use of Optical Testing Tools
   • OTDR (Optical Time Domain Reflectometer): Sends pulses through the fiber and measures reflections to identify junctions, splices, and faults. OTDRs provide approximate distances to junction boxes or faults along the cable route .
   • Visible Fault Locator (VFL): A laser light tester that emits visible light through the fiber to detect continuity and locate junctions over shorter distances, typically a few kilometers .
   • Clip-on Identifiers or Cold Clamps: These devices provide local optical or physical reference points to help pinpoint junction locations without disrupting active lines .
3. Documentation and Mapping
   • Maintain accurate maps of cable routes, including the location of all junction boxes, splices, and markers. This reduces the time needed for future maintenance and troubleshooting .
   • Record distances measured by OTDRs or other tools to cross-reference with physical locations.
4. Safety and Accessibility Considerations
   • Ensure junction boxes are accessible for maintenance and protected from environmental hazards such as moisture, direct sunlight, or physical damage .
   • For indoor installations, mount boxes near the fiber transfer point and avoid obstructed areas .

Best Practices

• Combine visual inspection with optical testing for the most accurate results.
• Use metallic markers or reference points for buried cables to simplify future location tasks.
• Regularly update route documentation and maintain clear access to all junction boxes.
• Avoid disturbing active fibers during testing to prevent service interruptions . By following these steps, technicians can accurately locate fiber optic junction boxes, ensuring efficient maintenance, troubleshooting, and network reliability.
