What to connect to the fiber optic terminal box

Fiber optic splice closure knowledge brief Published 07 Feb 2025

Prepared for preliminary research by the RIVO OPTICAL knowledge desk. Confirm cable count, splice capacity, sealing class, tray layout, protection sleeves and installation requirements against current standards and product documentation.

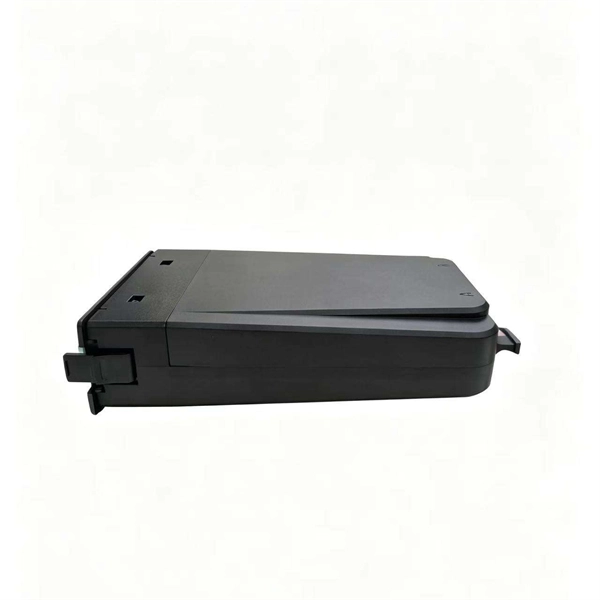

A fiber optic terminal box connects incoming fiber cables to pigtails, adapters, and drop cables, serving as the main interface for fiber distribution.Core Connections
  1. Incoming Fiber Cable: The main fiber line from the service provider or network backbone is fixed into the terminal box. The cable's strength member is secured, and the fiber cores are prepared for splicing or connectorization .
  2. Fiber Pigtails: Short fiber strands with pre-installed connectors are spliced to the incoming fiber inside the box. Pigtails allow easy connection to adapters and ensure minimal signal loss .
  3. Adapters and Connectors: After splicing, pigtails are connected to adapters mounted in the box. These adapters provide a standardized interface for connecting drop cables that lead to end-user devices or network equipment .
  4. Drop Cables: These are the outgoing fibers that connect the terminal box to customer premises or other network nodes. They plug into the adapters and carry the optical signal to its destination .
Additional Considerations
  • Splice Trays: Inside the box, splice trays protect the fusion splices and manage excess fiber slack, preventing bending or damage .
  • Slack Management: Extra fiber from both the line side and pigtails should be coiled neatly inside the box to maintain the minimum bend radius and avoid signal loss .
  • Indoor vs Outdoor Boxes: Indoor boxes are compact and suitable for apartments or small buildings, while outdoor boxes are weatherproof and can handle larger fiber counts .
Installation Tips
  • Ensure proper strain relief for all cables using the fixing ribs or cable glands provided .
  • Label each fiber connection clearly for future maintenance .
  • Test the optical signal after connecting pigtails and drop cables to verify signal integrity . By connecting the incoming fiber, pigtails, adapters, and drop cables correctly, the fiber optic terminal box functions as a secure, organized, and service-friendly point for fiber distribution and network maintenance .
