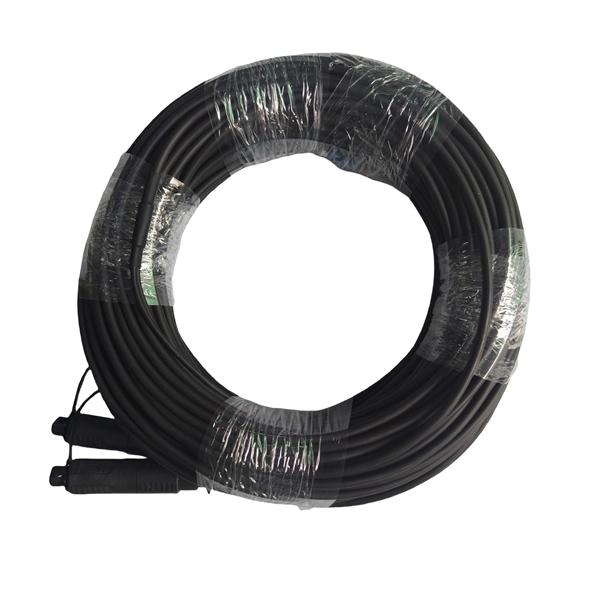

How to connect a 4-core multimode optical cable to a fiber optic transceiver

To connect a 4-core multimode fiber optic cable to a fiber optic transceiver, ensure proper connector type, polarity, and cleanliness for reliable signal transmission.Step 1: Identify the Cable and Transceiver Compatibility

• Confirm that your fiber optic transceiver (SFP module) supports multimode fiber and matches the wavelength and data rate of your network equipment .
• Check the connector type on the transceiver, typically LC duplex for standard SFPs or MTP/MPO for multi-fiber high-density modules .
• Ensure the 4-core multimode cable is compatible with the transceiver's port configuration.

Step 2: Prepare the Fiber Cable

• Remove the protective dust caps from both the fiber cable ends and the SFP module .
• Clean the fiber connectors using lint-free wipes and fiber cleaning fluid to prevent insertion loss or signal degradation .
• Verify that the fiber cores are intact and free from cracks or scratches.

Step 3: Connect the Fiber to the Transceiver

• Align the LC or MTP/MPO connectors with the transceiver ports. For a 4-core multimode cable, each fiber pair may correspond to TX (transmit) and RX (receive) channels .
• Insert the connectors gently until they click into place, ensuring a secure connection.
• Maintain proper polarity: TX on the transceiver must connect to RX on the opposite device, and vice versa .

Step 4: Cable Management

• Avoid bending the fiber cable beyond its minimum bend radius to prevent signal loss .
• Use Velcro straps or cable organizers to secure excess cable and prevent tension or kinks .

Step 5: Verify the Connection

• Check the Link LED on the transceiver to confirm a successful connection .
• Optionally, use a visual fault locator (VFL) or Optical Time Domain Reflectometer (OTDR) to test signal integrity and detect any faults along the fiber .

Additional Tips

• If using pre-terminated 4-core multimode cables, ensure the connector type matches the transceiver to simplify installation .
• For permanent installations, consider fusion splicing for low-loss connections, though this is more advanced than plug-and-play connectors . By following these steps, your 4-core multimode fiber optic cable will be properly connected to the transceiver, ensuring reliable high-speed data transmission.
