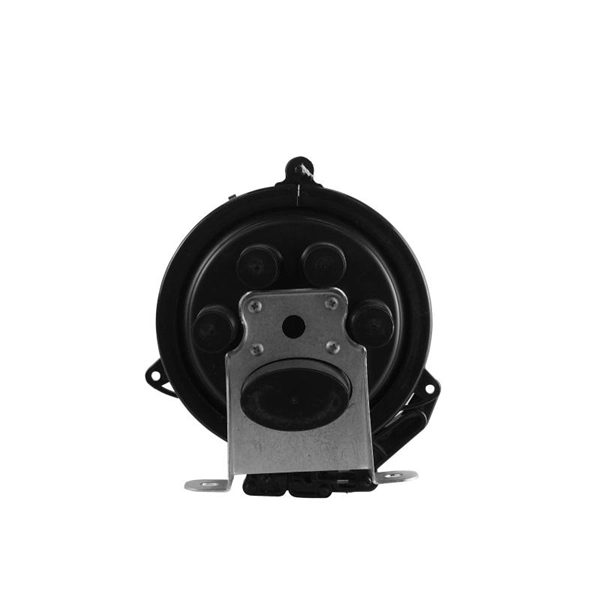

Basic Understanding of Output Optical Cables

Fiber optic splice closure knowledge brief Published 20 May 2022

Prepared for preliminary research by the RIVO OPTICAL knowledge desk. Confirm cable count, splice capacity, sealing class, tray layout, protection sleeves and installation requirements against current standards and product documentation.

Output optical cables transmit data or light using fiber optics, offering high-speed, low-loss, and interference-free connections.Structure of Optical Cables

An optical cable consists of three main components: the core, cladding, and coating. The core, typically made of glass or plastic, carries the light signal. Surrounding the core is the cladding, which has a slightly lower refractive index, enabling total internal reflection to keep light within the core. The outer coating protects the fiber from physical damage and environmental factors, sometimes including additional polymer or metallic layers for extra durability .

How Optical Cables Work

Optical cables transmit data as pulses of light, generated by lasers or LEDs. These light pulses travel through the fiber by reflecting off the cladding, allowing data to move at extremely high speeds with minimal signal loss. At the receiving end, a detector converts the light back into electrical signals for processing by devices like computers or routers .

Types of Optical Cables
  • Singlemode Fiber: Has a small core (8–9 µm) and is designed for long-distance, high-bandwidth applications. Subtypes include OS1 and OS2, with OS2 offering lower attenuation for longer distances .
  • Multimode Fiber: Has a larger core (50–62.5 µm) and supports multiple light paths, suitable for shorter distances. Types include OM1, OM2, OM3, and OM4, optimized for different bandwidths and laser sources .
Advantages Over Copper Cables

Optical cables provide several benefits compared to traditional copper cables:

  • Higher speed and bandwidth for large data transfers .
  • Lower signal loss over long distances, reducing the need for repeaters .
  • Immunity to electromagnetic interference, ensuring reliable data transmission .
  • Enhanced security, as optical signals are difficult to tap without detection .
  • Lightweight and durable, suitable for indoor and outdoor installations .
Connectors and Configurations

Common connectors include LC, SC, ST, MPO/MTP, and CS, with configurations like simplex (single fiber) or duplex (paired fibers). Pre-terminated solutions, such as Active Optical Cables (AOC) and Direct Attach Cables (DAC), simplify installation and improve network reliability .

Practical Considerations

When selecting optical cables, consider:

  • Distance and attenuation: Longer distances require singlemode fibers with lower loss.
  • Bandwidth requirements: Higher data rates may need multimode fibers optimized for lasers.
  • Environmental conditions: Cable jackets and coatings should match indoor, outdoor, or industrial environments.
  • Future scalability: Fiber systems can often be upgraded without replacing the entire infrastructure . Optical cables are widely used in data centers, telecommunications, and high-speed networks, providing fast, reliable, and secure data transmission over both short and long distances .
