Installation of Japanese server rack cable management system

Proper installation of a server rack cable management system ensures organized, safe, and efficient network operations while supporting high-performance equipment.Planning and Preparation

Before installation, assess your rack specifications, equipment depth, and cable volume. Modern network racks often house deep switches (16–20"), high-power PoE++ devices, and Wi-Fi 7 access points requiring 10Gbps backhaul, so plan for 30% extra U-space and verify rack depth to accommodate all devices and cable managers . Consider thermal management, as high-power switches can generate over 600W of heat, which may impact airflow and cable performance .

Core Components

A Japanese or any high-quality cable management system typically includes:

• Horizontal and vertical cable managers: Guide cables along rack width and height, maintaining airflow and preventing tangling .

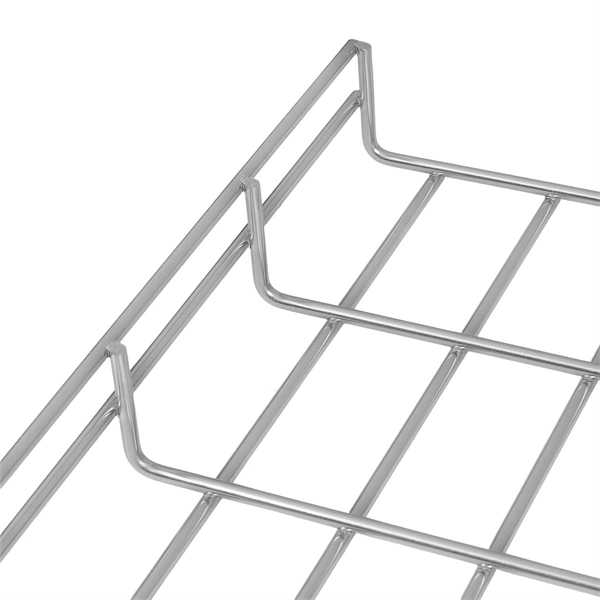

• Cable raceways or trays: Rigid channels for grouping multiple cables, often flame-retardant and customizable in length .
• Patch panels: Centralize network connections for easier maintenance and troubleshooting .
• Velcro straps or bundling systems: Secure cables without over-tightening, reducing strain and preventing damage .
• Labeling systems: Unique IDs for each cable end improve documentation and simplify future modifications .

Installation Techniques

1. Follow a structured layout: Use a “sandwich” approach—Patch Panel → 1U Cable Manager → Switch, with UPS at the bottom for stability .
2. Route cables logically: Separate power and data lines, avoid tight bundling, and maintain strain relief to prevent kinks .
3. Use appropriate cable types: Cat6A for high-speed or PoE++ devices, Cat6 for standard 1Gbps connections, and SFP+/DAC or fiber for switch-to-switch uplinks .
4. Maintain airflow: Ensure cable paths do not obstruct ventilation, especially around high-power devices .
5. Test and document: Verify all connections, check thermal performance, and label both ends of each cable before final deployment .

Software Integration

For large or complex racks, consider cable management software like Docusnap, which allows visual documentation of cable flows, patch panels, and network connections. This improves maintenance efficiency, cross-team communication, and compliance with standards such as DIN EN 50173 .

Maintenance and Optimization

• Regularly inspect cables for wear or strain.
• Keep documentation updated after any changes.
• Avoid overloading cable managers to maintain airflow and prevent overheating.
• Consider modular systems like Patchbox.one, which allow retractable cables and faster maintenance while saving rack space . By following these steps, a Japanese server rack cable management system—or any high-quality structured cabling solution—can provide organized, safe, and scalable network infrastructure that supports current and future technology needs.
