How to match fiber optic cables to patch panels

Matching fiber optic cables to patch panels requires selecting compatible fiber types, connectors, and panel configurations to ensure optimal network performance.Understanding Fiber Optic Patch Panels

A fiber optic patch panel is an enclosure that organizes and distributes fiber cables, acting as a hub for connecting multiple devices. Bulk fiber cables enter the panel and are separated into individual strands, which then connect to network equipment such as switches, servers, or transceivers ( ). Patch panels come in various types based on installation location: rack mount, wall mount, outdoor, and DIN mount. Rack-mounted panels typically follow 19” or 23” EIA-310 standards, with vertical spacing measured in Rack Units (RU) ( ).

Selecting the Right Fiber Optic Cable

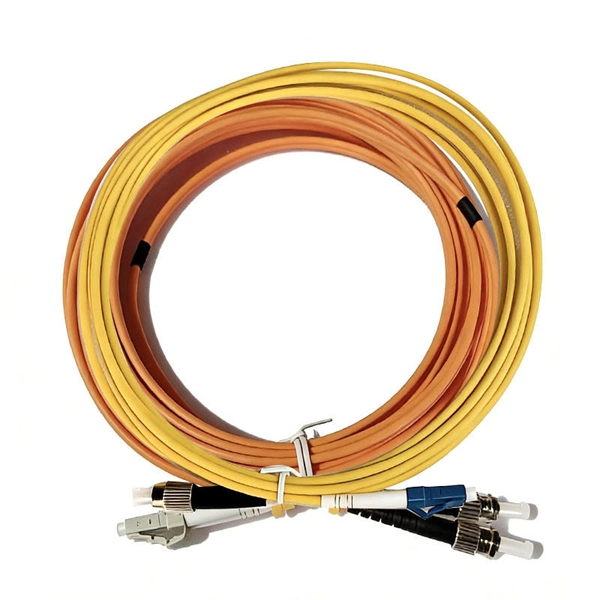

Fiber optic patch cables, also called fiber jumpers, are short cables with connectors on both ends used for flexible, short-distance connections within a network ( ). Key considerations include:

• Fiber Type:
  • Single-mode (SM): Narrow core (~9µm), suitable for long-distance links such as telecom or campus networks.
  • Multimode (MM): Wider core (50µm or 62.5µm), ideal for short intra-data center connections ( ).
• Connector Type: Common connectors include LC, SC, MPO/MTP, and the choice must match the patch panel ports and equipment interfaces ( ).
• Polish Type: UPC (Ultra Physical Contact) or APC (Angled Physical Contact) affects signal reflection and insertion loss; APC is preferred for high-performance or long-distance links ( ).
• Jacket Type: PVC for basic indoor use, Plenum (OFNP) for air ducts, Riser (OFNR) for vertical shafts, and LSZH for low-smoke, high-safety environments ( ).

Matching Cables to Patch Panels

1. Check Panel Port Type: Ensure the patch panel supports the connector type of your fiber cable (e.g., LC duplex ports require LC connectors).
2. Match Fiber Mode: Single-mode cables must connect to single-mode ports, and multimode cables to multimode ports to prevent signal loss ( ).
3. Consider Cable Length: Use the shortest practical patch cable to reduce insertion loss and maintain signal integrity.
4. Plan for Rack Space: Ensure the patch panel has enough Rack Units (RU) to accommodate the number of fibers you plan to connect ( ).
5. Label and Organize: Proper labeling and routing of cables within the panel prevent confusion and simplify maintenance ( ).

Best Practices

• Use duplex cables for bidirectional communication and MPO/MTP for high-density multi-fiber connections.
• Avoid bending cables beyond their minimum bend radius to prevent damage.
• Clean connectors before mating to reduce insertion loss and maintain performance.
• Consider future expansion when selecting panel capacity and cable types. By carefully selecting compatible fiber type, connector, and patch panel configuration, and following proper installation practices, you can ensure reliable, high-performance optical network connections ( ).
