What equipment is at the front end of the optical distribution box

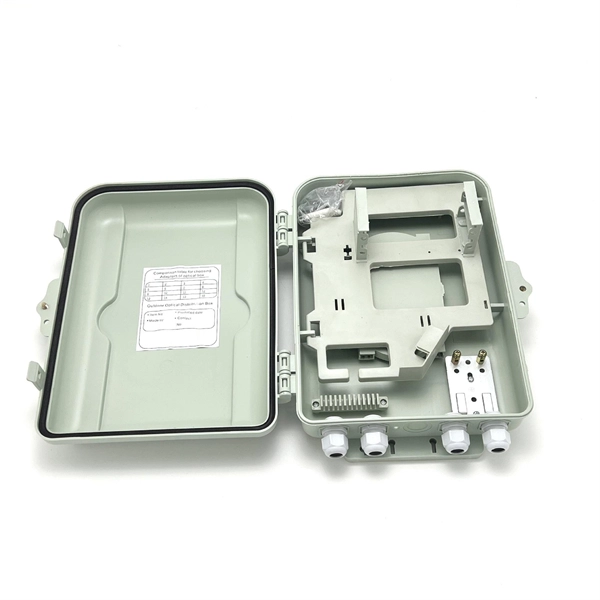

Optical distribution boxes (ODBs) serve as the front-end interface for fiber optic networks, managing, protecting, and distributing optical signals to downstream equipment.Overview

Optical distribution boxes are essential components in fiber optic networks, providing a secure and organized point for connecting optical cables to communication equipment. They facilitate fiber splicing, termination, and distribution, ensuring signal integrity and network reliability. These boxes are widely used in FTTx deployments, central offices, headends, and data centers .

Key Components

• Splice Cassette: Holds fiber splices and manages excess fiber length, allowing organized routing and easy access for maintenance .
• Front Panel/Connectors: Provides interfaces for optical jumpers and adapters, supporting common connector types such as LC, SC, E2000®, and ST .
• Cable Management: Guides fibers to prevent bending or entanglement, maintaining proper bend radius and reducing signal loss .
• Housing: Constructed from durable materials like ABS+PC, often with dustproof and waterproof designs for outdoor installations .

Types and Configurations

• Indoor vs. Outdoor: Indoor boxes are compact and wall-mounted, while outdoor boxes are rugged, weatherproof, and pole- or cabinet-mounted .
• Capacity: Fiber distribution boxes can range from 1 to 24 cores, while high-density optical distribution frames (ODFs) can manage thousands of fibers per frame .
• Mounting Options: Wall, pole, or cabinet installations are available depending on network requirements .

Integration with Optical Distribution Frames

Front-end ODBs often interface with ODFs, which provide high-density fiber interconnects and cross-connect capabilities. Examples include:

• Panduit FlexCore™ ODF: Front-access system with modular cable managers, supporting up to 3,168 fibers per frame, and offering multi-tiered security with lockable doors .
• Belden DCX ODF Cabinets: Configurable front-access cabinets for high-density fiber interconnects, with lockable doors and removable side panels for easy maintenance .
• Corning Centrix™ System: High-density fiber management with optimized jumper routing, supporting thousands of LC or SC ports per frame, suitable for central office and FTTx applications .

Benefits

• Signal Protection: Shields fibers from environmental damage and mechanical stress .
• Network Flexibility: Supports easy moves, adds, and changes, reducing downtime .
• Scalability: Modular designs allow expansion as network demand grows .
• Security: Lockable doors and controlled access prevent unauthorized tampering .

Applications

• FTTx Networks: Distributes fiber to multiple households or business units, often including splitters for signal distribution .
• Data Centers: Provides organized, high-density fiber management for cross-connects and interconnects .
• Central Offices/Headends: Acts as the main distribution point for optical signals entering the network . Optical distribution boxes are therefore a critical front-end component, ensuring efficient, secure, and scalable fiber optic network deployment.
