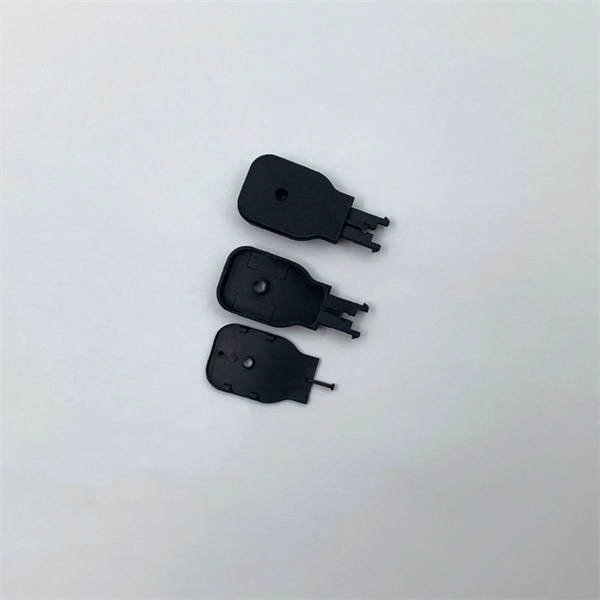

Principle of Light-Controlled Atomization Module

A light-controlled atomization module uses electrical signals, often triggered by a light source, to drive a piezoelectric element that converts liquid into fine mist through ultrasonic vibrations.Working Principle

The core of a light-controlled atomization module is the atomizer, typically an ultrasonic piezoelectric transducer. When a high-frequency electrical signal is applied to the piezo element, it vibrates at ultrasonic frequencies. These vibrations create mechanical waves on the liquid surface, breaking it into micron-sized droplets (usually 1–5 microns), which are then dispersed as a fine mist into the air, enhancing humidification or scent diffusion .

Light Control Mechanism

In a light-controlled setup, the module is integrated with a lighting element or a light sensor. The light signal can act as a trigger for the module, either directly or via a microcontroller (MCU). For example:

  • Direct control: The light intensity or a photodiode output can switch the module on or off.
  • MCU-based control: The light signal is read by a microcontroller, which then simulates a button press or sends a high/low voltage signal to the atomizer to start or pause mist generation . This allows the atomization process to be synchronized with lighting conditions, such as turning on mist when a lamp is illuminated or adjusting mist output based on ambient light.
Integration with Lighting Devices

Some designs combine the atomization module with a lighting device, forming a composite unit that can be mounted like a standard light bulb. The heat from the lighting element can also enhance atomization efficiency, especially for volatile liquids like essential oils . The module typically includes:

  • Atomizer: Generates mist via ultrasonic vibrations.
  • Liquid container: Holds water or scented liquids.
  • Control circuitry: Interfaces with light signals or MCU for automated operation.
  • Airflow module: Helps disperse the mist effectively.
Applications
  • Humidification: Produces fine mist for indoor air quality improvement.
  • Aromatherapy: Atomizes essential oils for scent diffusion.
  • Electronics printing: In specialized setups, atomization is used to deliver conductive or non-conductive inks in additive manufacturing .
  • Smart lighting: Combines illumination and misting for aesthetic or functional purposes.
Key Considerations
  • The atomizer must be placed on the liquid surface, not submerged, to prevent malfunction or overheating .
  • Droplet size and mist quality depend on the piezo element design and mesh or perforation layer used in the transducer .
  • Light-controlled operation allows automatic or programmable misting, enhancing energy efficiency and user convenience. In summary, a light-controlled atomization module leverages ultrasonic piezoelectric vibrations to atomize liquid, with light signals or sensors serving as the control input, enabling synchronized or automated mist generation for various applications .
