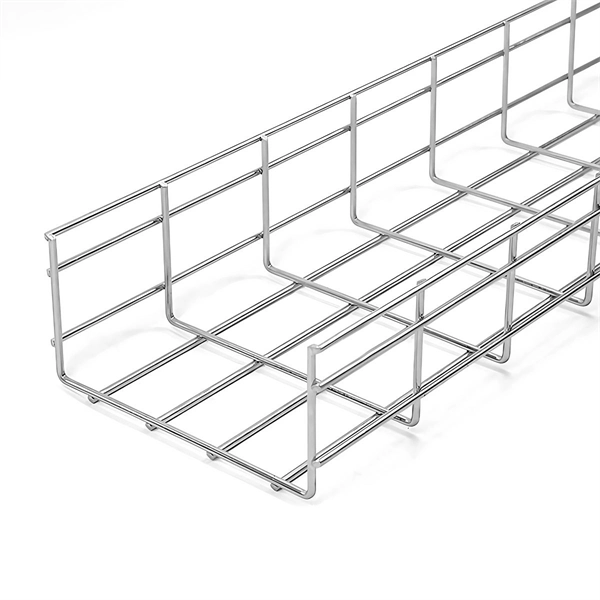

Thickened cable trays

Thickened cable trays are reinforced cable management systems designed to support heavier loads, resist environmental stress, and provide flexible, safe routing for electrical and communication cables.Overview of Thickened Cable Trays

Thickened cable trays are an enhanced version of standard cable trays, featuring increased material thickness or reinforced structures to handle higher cable loads and longer spans without sagging. They are widely used in industrial, commercial, and offshore applications where mechanical strength, durability, and corrosion resistance are critical ( ).

Materials and Corrosion Resistance

Thickened cable trays are manufactured from a variety of materials depending on environmental conditions:

• Steel: Often pre-galvanized or hot-dip galvanized for corrosion protection. Suitable for indoor and outdoor industrial environments ( ).
• Stainless Steel (AISI 316L): Offers superior corrosion resistance, especially in chlorinated or marine environments, due to chromium and molybdenum content ( ).
• Aluminum: Lightweight with excellent corrosion resistance due to a natural oxide layer. Ideal for areas exposed to atmospheric agents ( ).
• Fiberglass Reinforced Plastic (FRP): Pultruded trays using polyester or vinyl ester resin provide high strength-to-weight ratio and chemical resistance ( ).

Design Considerations

When designing thickened cable trays, several factors must be considered:

• Load Capacity: Determine the total weight of cables and any additional equipment. Thickened trays allow for higher load ratings and longer unsupported spans ( ).
• Tray Width and Depth: Adjusting width can accommodate more cables, while depth ensures proper cable separation and airflow ( ).
• Thermal Expansion: Materials expand and contract with temperature changes; allowances must be made to prevent structural stress ( ).
• Environmental Factors: Corrosive atmospheres, high humidity, or chemical exposure require selecting appropriate materials and finishes ( ).

Installation Best Practices

• Support Spacing: Reinforced trays can span longer distances, but supports should be placed according to load and material specifications ( ).
• Splice Plates and Joints: Use proper splice plates to maintain structural integrity at tray connections ( ).
• Cable Fill Management: Avoid overfilling; calculate allowable fill area to prevent overheating and maintain safety ( ).
• Compliance with Standards: Install trays according to BS EN 61537, BS 6946, NEC, or IEC standards depending on location ( ).

Advantages of Thickened Cable Trays

• Higher Load Capacity: Supports heavier cables and equipment without deformation.
• Durability: Resistant to mechanical stress, corrosion, and environmental factors.
• Flexibility: Easier to modify or expand compared to conduit systems.
• Cost Efficiency: Reduced number of supports and simplified installation can lower overall project costs ( ).

Applications

Thickened cable trays are ideal for:

• Industrial plants with heavy power and control cables.
• Offshore and marine installations requiring corrosion-resistant materials.
• Data centers and commercial buildings with high-density cabling.
• Environments with extreme temperatures or chemical exposure ( ).

Summary

Thickened cable trays provide a robust, flexible, and safe solution for managing electrical and communication cables in demanding environments. Proper selection of material, design, and installation practices ensures long-term reliability, compliance with standards, and cost-effective cable management.
