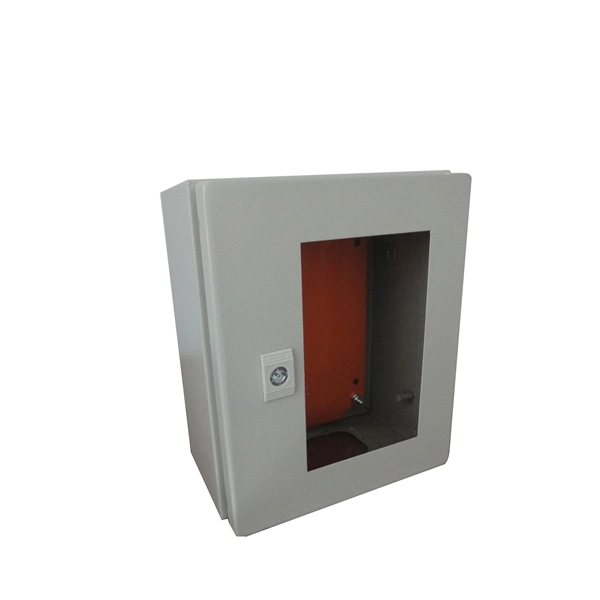

Reasons for overheating of wires in the distribution box

Wires in distribution boxes overheat primarily due to excessive current, high resistance at connections, undersized conductors, poor-quality materials, and inadequate heat dissipation.Key Causes of Overheating

1. Electrical Overloading Overheating often occurs when a circuit carries more current than it is designed for. Every wire has a safe ampacity, and exceeding this limit increases the heat generated according to the Joule heating principle (P = I²R), where higher current exponentially raises the thermal output. Continuous overloading can push the wire and insulation beyond their rated temperature, leading to softening, melting, or fire hazards . 2. High Resistance at Connections Loose, corroded, or poorly crimped connections create localized high resistance, forming thermal bottlenecks. These hot spots can reach temperatures sufficient to melt insulation even if the overall current is within limits. Proper torque and secure connections are essential to minimize this risk . 3. Undersized Conductors Using wires with a cross-sectional area smaller than required for the load increases resistance, generating excessive heat. For example, a 1.5mm² wire carrying a 20A load instead of a 2.5mm² wire can increase resistance by nearly 40%, causing serious overheating . 4. Poor-Quality Materials Substandard conductor materials, such as low-purity copper or copper-clad aluminum, have higher resistivity, which increases heat generation. Similarly, low-quality insulation sheaths (PVC or XLPE) may soften or degrade under normal operating temperatures, reducing safety margins . 5. Inadequate Heat Dissipation Distribution boxes that are overcrowded, poorly ventilated, or located near other heat sources can trap heat. Dust accumulation inside the box acts as an insulating layer, further preventing heat escape and raising wire temperatures . 6. Insulation Damage and Moisture Damaged insulation or water ingress reduces insulation resistance, causing leakage currents and localized heating. Over time, this can lead to phase-to-phase short circuits or insulation breakdown . 7. Aging or Faulty Components Old breakers, worn-out terminals, or degraded wiring lose their ability to handle normal loads safely. Corrosion and material fatigue increase resistance, contributing to overheating .

Preventive Measures

• Select the correct wire gauge for the expected load and ensure compliance with standards.
• Use high-quality conductors and insulation materials.
• Ensure all connections are tight, clean, and properly torqued.
• Maintain adequate spacing and ventilation in distribution boxes.
• Regularly inspect for dust, moisture, or signs of insulation degradation.
• Avoid overloading circuits and distribute loads evenly across breakers. By addressing these factors, the risk of wire overheating, insulation failure, and potential fire hazards can be significantly reduced.
