Fiber Optic Distribution Frame Design

A well-designed Fiber Optic Distribution Frame (ODF) centralizes fiber termination, splicing, patching, and cable management to ensure scalability, protection, and efficient network maintenance.Core Functions of an ODF

An ODF serves as the central hub for fiber management, integrating four primary functions:

1. Splicing Management: Houses splice trays that protect fusion or mechanical splices, maintain proper bend radius, and provide fiber slack storage to prevent stress and signal loss ( ).
2. Fiber Termination: Provides adapter panels for LC, SC, ST, FC, or MPO/MTP connectors, enabling organized connections between active equipment and fiber cables ( ).
3. Cable Routing and Slack Management: Includes rings, guides, and holders to route fibers neatly, prevent tangling, and maintain bend-radius compliance ( ).
4. Protection and Reliability: Shields fibers from environmental hazards, dust, moisture, vibration, and physical damage, enhancing long-term network stability ( ).

Key Components

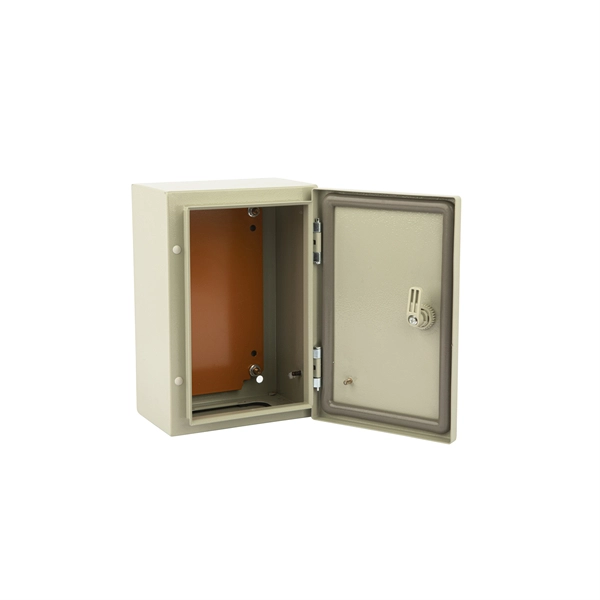

• Enclosure: The outer shell, made from cold-rolled steel, aluminum, or flame-retardant plastic, provides structural protection. Indoor enclosures are typically rack- or wall-mountable, while outdoor enclosures are weatherproof with IP65/IP66 ratings ( ).
• Patch Panels: Modular units for organizing fiber connectors and cross-connections, supporting scalable expansion ( ).
• Splice Trays: Stackable trays that organize and protect fiber splices, available in capacities from 12-core to 48-core or higher ( ).
• Cable Management Accessories: Rings, guides, and holders maintain neat fiber routing and reduce stress on fibers ( ).

Types of ODFs

• Rack-Mount ODFs: Standard 19-inch or 23-inch frames for high-density deployments in data centers or telecom exchanges. Often feature sliding trays for easy access ( ).
• Wall-Mount ODFs: Compact units suitable for small offices or limited-space environments, providing a termination point for indoor or outdoor cables ( ).
• Modular ODFs: Scalable systems that allow incremental expansion as fiber counts grow ( ).
• Outdoor ODFs: Rugged, weatherproof enclosures for external deployments, protecting fibers from environmental stress ( ).

Design Considerations

• High-Density Management: Use MPO/MTP-enabled modules or staggered cassettes to maximize port density while maintaining accessibility ( ).
• Minimize Jumper Lengths: Standardize jumper lengths to reduce inventory and prevent entanglement ( ).
• Labeling and Documentation: Clearly label all fibers and ports for quick identification and maintenance ( ).
• Future Expansion: Plan for additional fiber counts and modular upgrades to accommodate network growth ( ).
• Compliance: Ensure frames meet industry standards such as GR-449 for rear cable access and Zone 4 for front access ( ).

Best Practices

• Maintain proper bend radius and slack for all fibers.
• Regularly inspect and clean connectors to prevent signal degradation.
• Use modular patch panels and cassettes for scalable expansion.
• Integrate ODFs with active electronics using port replication to reduce downtime during maintenance ( ). A thoughtfully designed ODF ensures efficient fiber management, reduces mean time to repair (MTTR), and supports high-density, scalable, and reliable optical networks.
