A small factory power distribution box should be designed for safe, expandable, and code-compliant distribution, integrating proper protection devices, busbars, and layout optimized for load and maintenance.Key Components and Functions
A distribution box in a small factory receives incoming power and safely distributes it to multiple circuits. Essential components include:
- Main switch or isolator for emergency disconnection and maintenance.
- Protective devices such as MCBs, RCDs, RCBOs, fuses, and surge protective devices (SPDs) to prevent overloads, short circuits, and electrical faults.
- Busbars, neutral bars, and earth bars for organized connection of live, neutral, and protective earth conductors.
- DIN rails and terminal blocks for mounting additional devices and maintaining neat wiring.

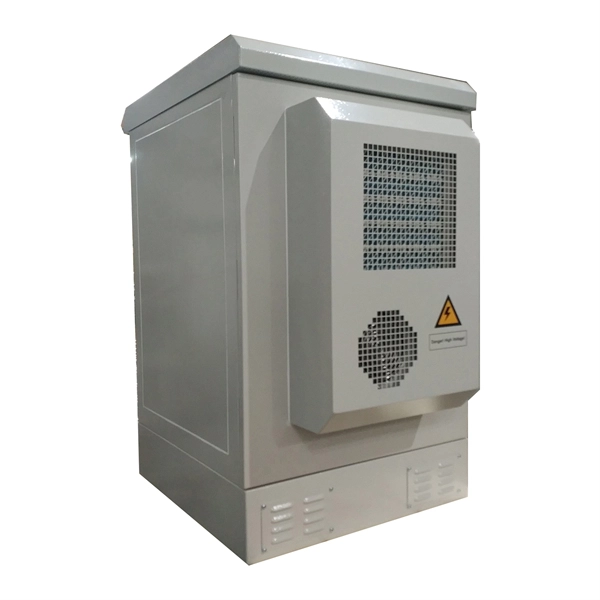

- Enclosure with appropriate IP or NEMA rating to protect against dust, moisture, and mechanical impact ( ).
Layout and Configuration Strategies
Optimizing the layout ensures safety, reliability, and ease of maintenance:
- Load assessment: Calculate total power demand, including continuous loads (production lines, pumps) and intermittent loads (maintenance equipment, temporary workstations) to determine rated current for each distribution box ( ).
- Circuit grouping: Separate high-power equipment clusters (e.g., machinery, HVAC) from low-power areas (e.g., offices, control rooms) to minimize cable length and voltage drop.
- Voltage separation: If multiple voltage levels are used (e.g., 400V, 1kV), ensure proper segregation to prevent interference.
- Protection strategy: Select devices based on fault risk, including overcurrent, short-circuit, and arc fault protection. Modern boxes may include microprocessor-based protection for fast fault isolation ( ).
- Accessibility and centralization: Place the box in a location that allows quick access during emergencies and minimizes voltage drop across the facility ( ).
- Future expansion: Include spare ways and modular design to accommodate additional circuits without major rewiring ( ).
Standards and Compliance
Ensure the distribution box meets relevant standards and local codes:
- IEC standards: IEC 61439, IEC 60670, IEC 60898, IEC 61008/61009, IEC 61643.
- Regional codes: NEC, UL, BS 7671, or other local regulations.
- Certification: Use UL/CE-certified components and document installation for inspections ( ).
Installation Considerations
- Enclosure material: Steel for durability in industrial environments, or plastic for indoor, lighter-duty applications.
- Environmental protection: Choose IP66 or NEMA 4X for outdoor or harsh conditions.
- Cable entry and heat dissipation: Ensure sufficient space for wiring, ventilation, and future upgrades.
- Labeling and documentation: Clearly label circuits and maintain wiring diagrams for maintenance and troubleshooting ( ).
Tools for Configuration
Web-based configurators, such as Eaton's distribution board configurator, can assist in designing a compliant system by selecting system type, mounting, mains connection, surge protection, and generating documentation including wiring plans and parts lists ( ).
Summary
For small factories, a well-configured distribution box balances safety, efficiency, and expandability. Proper component selection, strategic layout, adherence to standards, and planning for future growth are essential to maintain reliable power distribution and minimize downtime.
