Fiber optic couplers split or combine optical signals, while fiber optic connectors mechanically join fibers for easy connection and disconnection.Fiber Optic Couplers

Fiber optic couplers are devices that connect multiple fiber ends, allowing light to be split from one input to multiple outputs or combined from multiple inputs into a single output . They can be passive, requiring no external power, or active, which use detectors and light sources to manage signals . Types of couplers include:

• Splitters: Divide an optical signal into two or more outputs; Y-couplers provide equal power distribution, while T-couplers distribute power unevenly .
• Combiners: Merge multiple signals into one output.
• X-couplers, trees, and stars: Used in complex network topologies for multi-path signal distribution .
• Polarization-maintaining (PM) couplers: Preserve the polarization of light, important in specialized applications .
• Planar lightwave circuits (PLC): Integrated waveguides that couple fibers in compact, stable configurations . Couplers can be fabricated using fused fibers, side-polished fibers, microlenses, or beam splitters, depending on the application and required performance . They are widely used in telecommunications, data centers, and optical sensing systems.

Fiber Optic Connectors

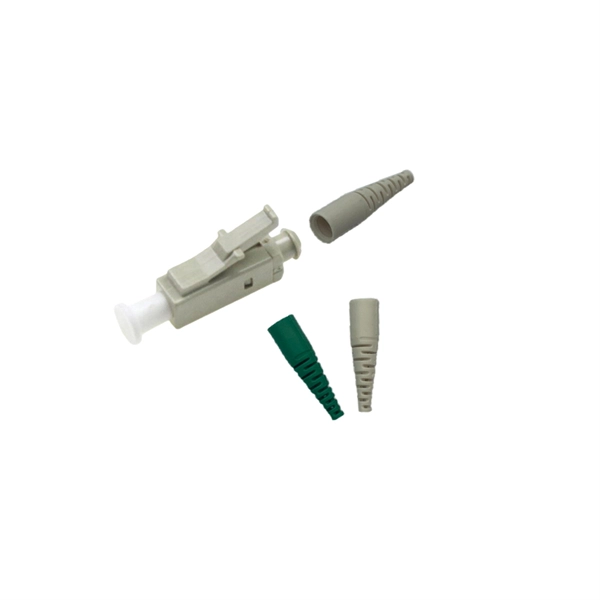

Fiber optic connectors are mechanical devices that align and join optical fibers, enabling light to pass with minimal loss while allowing easy disconnection for maintenance or reconfiguration . Unlike splicing, connectors are non-permanent and provide flexibility in network setups. Common connector types include:

• SC (Subscriber Connector): Square-shaped, push-pull mechanism, widely used in FTTH and data centers; SC/APC variants reduce return loss .
• LC (Lucent Connector): Miniaturized version of SC, ideal for high-density applications with a latch mechanism .
• ST, FC: Older types with bayonet or threaded coupling, still used in legacy systems .
• MPO/MTP®: Multi-fiber connectors for parallel transmission in data centers . Specialized connectors include field-attachable, hybrid (connecting different types), bulkhead, and angle-polished connectors for high-precision applications . Connectors are essential for maintaining low insertion loss, high return loss, and reliable optical performance.

Key DifferencesFeatureFiber Optic CouplerFiber Optic ConnectorFunctionSplit or combine optical signalsJoin fibers mechanically for easy connection/disconnectionPower requirementPassive or activePassiveApplicationSignal distribution, multiplexing, sensingNetwork maintenance, patching, equipment connectionFabricationFused fibers, microlenses, PLCsCeramic ferrules, mechanical alignmentFlexibilityFixed splitting ratios or combiningReusable, field-attachable, adaptable

Both couplers and connectors are critical for reliable fiber optic transmission, with couplers managing signal paths and connectors ensuring flexible, low-loss connections .

Applications

• Telecommunications and data centers: Couplers for splitting signals, connectors for patch panels and transceivers.
• Sensing and instrumentation: PM couplers and specialized connectors for precise optical measurements.
• FTTH networks: SC and LC connectors for subscriber connections, couplers for signal distribution. Understanding the types and functions of both components is essential for designing efficient, high-performance fiber optic networks.
