What are the units for cable trays

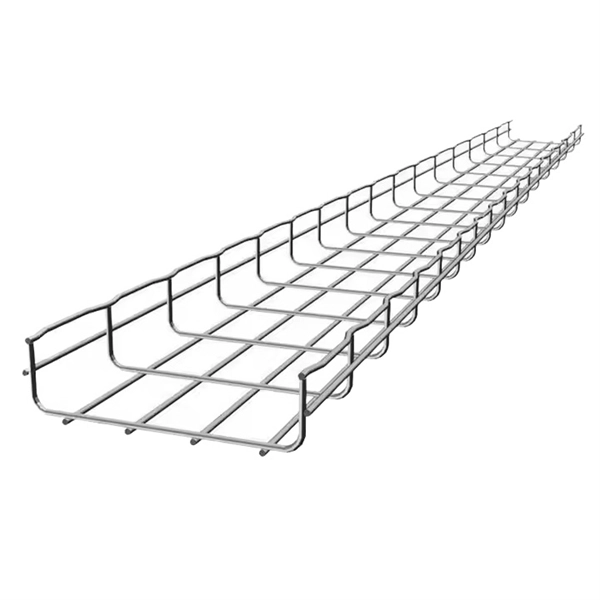

Cable trays are usually designated by their width in millimeters (mm) or inches and by their length in meters (m) or feet (ft).Width and Length

Cable trays are commonly specified by their width, which typically ranges from 50 mm to 900 mm, depending on the number and size of cables to be supported, and by their length, which is usually 3 meters per section in standard installations . In some regions, imperial units such as inches for width and feet for length are also used, particularly in the United States .

Rung Spacing

For ladder-type cable trays, the spacing between rungs is an important specification and is usually given in inches or millimeters, commonly 4 to 12 inches (100 to 300 mm) . This spacing ensures proper support for heavy power cables and allows adequate ventilation to prevent heat buildup.

Material and Load Considerations

While the unit of measurement primarily refers to physical dimensions, cable trays are also rated for load capacity, which is typically expressed in kilograms per meter (kg/m) or pounds per foot (lb/ft), depending on the standard used . This ensures that the tray can safely support the weight of the cables over its span.

Standards

Cable tray dimensions and units are governed by standards such as NEMA VE 1 (USA), IEC 61537 (international), and BS EN 61537 (UK/Europe), which define width, length, rung spacing, and load ratings to ensure compatibility and safety in installations . In summary, millimeters or inches for width, meters or feet for length, and kilograms per meter or pounds per foot for load are the standard units used to designate cable trays in electrical installations .
