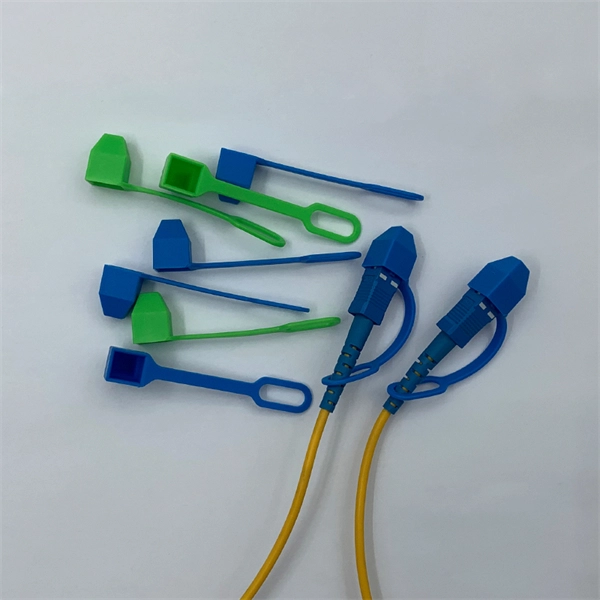

Attenuation after fiber optic cable patch cord

Attenuation in fiber optic patch cords is the reduction of signal strength as light travels through the cable, and low-attenuation cables are essential for maintaining high-speed, reliable network performance.What is Attenuation?

Attenuation refers to the loss of optical signal power as it travels through a fiber optic cable. Even though fiber transmits light efficiently, some signal degradation occurs due to absorption, scattering, and imperfections in the fiber or connectors. Patch cords add a small amount of extra loss, and poor-quality cables or connectors can increase attenuation, leading to weaker signals and potential data errors .

Factors Affecting Attenuation
  1. Fiber Type:
    • Single-mode fibers (OS1/OS2) have extremely low attenuation, making them ideal for long-distance and high-speed networks .
    • Multi-mode fibers (OM2, OM3, OM4, OM5) are suitable for shorter distances but generally exhibit higher attenuation than single-mode fibers .
  2. Connector Quality:
    • High-precision connectors (LC, SC, FC, ST) with well-polished end faces reduce insertion loss and maintain signal integrity .
  3. Cable Handling and Bending:
    • Excessive bending or stress can increase attenuation. Bend-insensitive fibers (e.g., G.657A1/A2) help maintain low loss in tight spaces .
  4. Length of the Patch Cord:
    • Longer cables naturally introduce more attenuation, though high-quality single-mode cables keep losses minimal over several kilometers .
Typical Attenuation Values
  • Single-mode patch cords: ~0.2–0.5 dB/km
  • Multi-mode patch cords: ~0.5–3 dB/km depending on the fiber type and wavelength
  • Connector insertion loss: Typically 0.1–0.3 dB per connection
Benefits of Low-Attenuation Patch Cables
  • Stronger, stable signals: Reduces data errors and retransmissions, improving network reliability .
  • High-speed performance: Essential for 10G, 40G, and 100G networks where signal quality is critical .
  • Improved uptime: Low-loss cables maintain consistent connections in data centers and enterprise networks .
  • Compatibility with sensitive applications: Critical in FTTH, medical imaging, and high-performance computing environments .
Practical Considerations

When selecting patch cords, consider the fiber type, connector quality, jacket material, and bend-insensitive design. Pre-terminated, low-loss cables are recommended for rapid deployment and high-density environments, ensuring minimal signal degradation and reliable network operation . In summary, attenuation is a key factor in fiber optic performance, and choosing low-attenuation patch cords ensures strong, stable signals, high-speed data transmission, and reduced network errors.
