Connecting a fiber optic switch to a network switch

Connecting a fiber optic switch to a network requires compatible SFP/SFP+ modules, fiber optic cables, and proper alignment with the switch ports to ensure high-speed, reliable data transmission.Required Equipment

1. Fiber Optic Cables: Choose between single-mode (for long distances) or multi-mode (for shorter distances) depending on your network layout and distance requirements .
2. SFP/SFP+ Modules: These transceivers connect the switch to the fiber cables. SFP supports standard speeds, while SFP+ supports higher speeds up to 10 Gbps .
3. Network Switch: Ensure the switch has available SFP/SFP+ ports compatible with your fiber modules .
4. Fiber Patch Panels (Optional): Useful for organizing and managing multiple fiber connections, especially in larger networks .
5. Media Converters (Optional): Needed if your switch lacks SFP ports; they convert electrical signals to optical signals and vice versa .

Step-by-Step Connection Process

1. Inspect and Clean Connectors: Before connecting, ensure fiber cable ends and switch ports are clean and free of dust or debris to prevent signal loss .
2. Insert SFP Modules: Install the SFP or SFP+ transceivers into the switch ports according to the manufacturer's instructions .

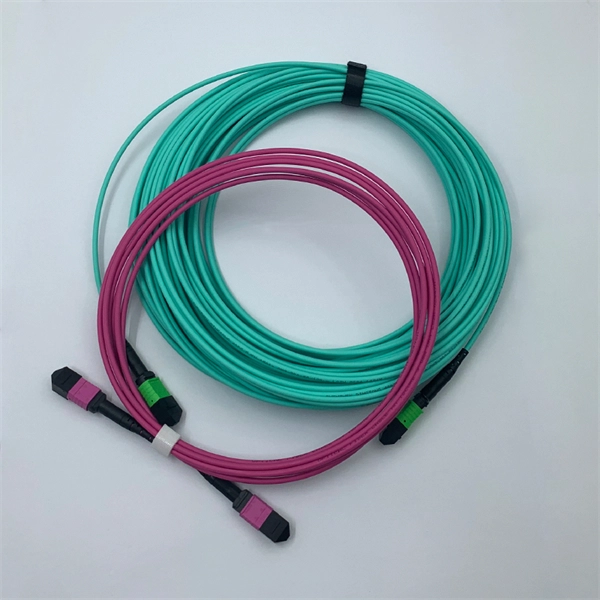

3. Connect Fiber Cables: Align the fiber connectors (LC, SC, ST, or MTP/MPO) with the SFP module ports. Ensure outbound connects to inbound on the opposite end to maintain proper signal flow .
4. Secure and Route Cables: Avoid sharp bends; follow manufacturer guidelines for minimum bend radius. Use conduits or cable trays for protection, especially for outdoor runs .
5. Test the Connection: Use an optical power meter or visual fault locator to verify signal integrity and ensure no significant loss or misalignment .
6. Configure the Switch: Enable the SFP ports in the switch's management interface and configure VLANs or other network settings as needed .

Practical Considerations

• For short distances, multi-mode fiber is cost-effective; for longer distances, use single-mode fiber .
• LC connectors are commonly used due to their compact size and ease of use .
• Outdoor fiber runs should be buried in conduit if exposed to potential physical damage, but depth depends on local regulations and traffic exposure .
• Fiber-to-the-desktop (FTTD) setups can connect fiber directly to computers using fiber network adapters for high-speed connections . By following these steps and using the appropriate equipment, you can successfully integrate a fiber optic switch into your network, ensuring high-speed, reliable connectivity across your devices.
