Fiber Optic Cable Splicing 36

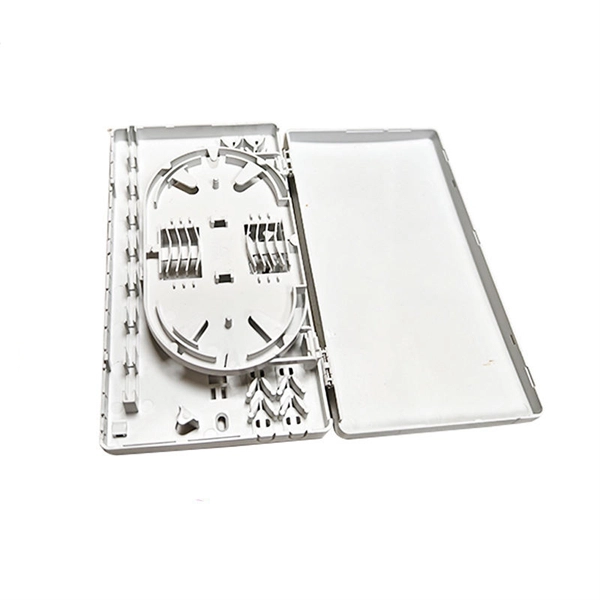

36-fiber splice trays are designed to securely house and manage up to 36 fusion splices, ensuring optimal fiber organization, protection, and minimal signal loss.Overview

A 36-fiber splice tray is a compact, organized platform used to store and protect fiber optic splices, typically in rack-mounted enclosures, fiber distribution boxes, or splice closures. These trays are essential for maintaining the integrity of optical signals by preventing excessive bending, stress, or damage to the fibers during installation and operation .

Key Features

• Capacity: Supports up to 36 fusion splices, with some designs allowing stacking to accommodate higher fiber counts .
• Fiber Management: Integral bend radius control ensures fibers are looped safely, preventing signal attenuation or breakage .
• Material and Design: Trays are made from durable plastic or aluminum, often with clear covers for easy inspection and hinged or self-stacking designs for efficient handling .
• Compatibility: Works with various fiber types including OS1, OS2, OM1, OM2, OM3, and OM4, and fits standard rack mount enclosures (1U, 2U, 4U) or wall-mounted panels .
• Ease of Use: Features pivoting splice holders, clear labeling, and logical organization to simplify installation, maintenance, and rework .

Applications

• Data Centers and Enterprise Networks: Provides organized splicing for backbone and horizontal cabling, ensuring high reliability and minimal downtime .
• Field Deployments: Used in aerial, duct, or buried applications when combined with splice closures to protect splices from environmental factors .
• Intermediate Splicing Points: Ideal for joining incoming and outgoing cables or connecting to pigtails at termination points .

Installation Best Practices

1. Observe Minimum Bend Radius: Always loop fibers around the tray to maintain the recommended bend radius, preventing signal loss .
2. Secure Splices Properly: Use the provided splice holders to fix fibers in place and avoid movement.
3. Maintain Slack: Ensure sufficient fiber length (typically ~1.2 meters) to allow complete loops around the tray without tension .
4. Use in Conjunction with Closures: For outdoor or high-stress environments, combine trays with fiber splice closures or enclosures for added protection .

Advantages

• Protects splices from mechanical stress and environmental damage.
• Simplifies fiber management and troubleshooting.
• Supports high-density installations with minimal space requirements.
• Compatible with both fusion and mechanical splicing methods. 36-fiber splice trays are a versatile and essential component in modern fiber optic networks, providing secure, organized, and efficient management of splices for both small-scale and large-scale deployments .
