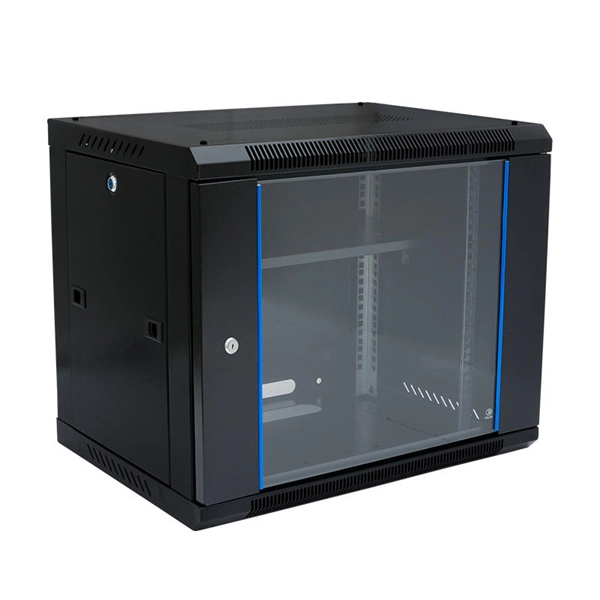

Fiber Optic Distribution Frame and Terminal Box

Fiber Optic Distribution Frames (ODF) and Fiber Optic Terminal Boxes (FTB) are essential components for organizing, protecting, and distributing optical fibers in FTTH/FTTX networks.Fiber Optic Distribution Frame (ODF)

A Fiber Optic Distribution Frame (ODF) is a centralized enclosure used to manage and organize optical fibers from backbone or feeder cables. It serves as a cross-connection point between incoming feeder fibers and outgoing distribution fibers, providing a structured interface for splicing, patching, and routing. Key features include:

• Capacity: Supports a wide range of fiber cores, typically from 8 to 288 cores, depending on network scale .
• Construction: Made from durable materials such as powder-coated steel or high-strength ABS plastic, often with lockable doors for security .
• Mounting Options: Available in rack-mount, wall-mount, or floor-standing cabinets, suitable for indoor or outdoor environments .
• Protection: Includes splice trays, adapter panels, and fiber routing guides to maintain minimum bend radius and prevent fiber damage .
• Applications: Used in data centers, central offices, and distribution nodes, acting as the main hub for fiber management and network expansion .

Fiber Optic Terminal Box (FTB)

A Fiber Optic Terminal Box (FTB), also called a fiber termination box, is a smaller enclosure designed for last-mile fiber termination at the subscriber or building level. It provides a secure and organized interface for connecting drop cables to Optical Network Terminals (ONTs). Key features include:

• Capacity: Typically supports 1 to 24 fiber cores, with configurations like 2-core, 4-core, 8-core, or 16-core boxes .
• Construction: Made from PC+ABS or ABS+PC engineering plastics, offering UV resistance, durability, and protection against environmental factors .
• Design: Compact, wall-mounted or pole-mounted, often with sliding or flip-up covers for easy access and maintenance .
• Functions: Provides fiber splicing, termination, storage, and patching, ensuring a stable and protected connection for end users .
• Applications: Ideal for residential homes, multi-dwelling units, commercial buildings, and villas, serving as the interface between the distribution network and the subscriber equipment .

Key DifferencesFeatureFiber Optic Distribution Frame (ODF)Fiber Optic Terminal Box (FTB)FunctionCentralized fiber management and cross-connectionLast-mile fiber termination and subscriber interfaceCapacityHigh (up to 288 cores)Low to medium (1–24 cores)SizeLarge, cabinet or rack-mountedCompact, wall or pole-mountedLocationData centers, central offices, distribution nodesHomes, apartments, commercial buildingsComponentsSplice trays, adapter panels, routing guidesSplice holders, patching ports, storage for drop cablesEnvironmental ProtectionIndoor/outdoor, IP55–IP65 ratedIndoor/outdoor, IP65 rated, UV-resistantSummary

Both ODFs and FTBs are critical for efficient fiber network deployment. ODFs provide centralized management for high-capacity networks, while FTBs ensure secure, organized, and accessible fiber termination at the subscriber level. Modern enclosures are designed for durability, environmental protection, and ease of maintenance, supporting scalable FTTH, FTTB, and FTTX deployments .
