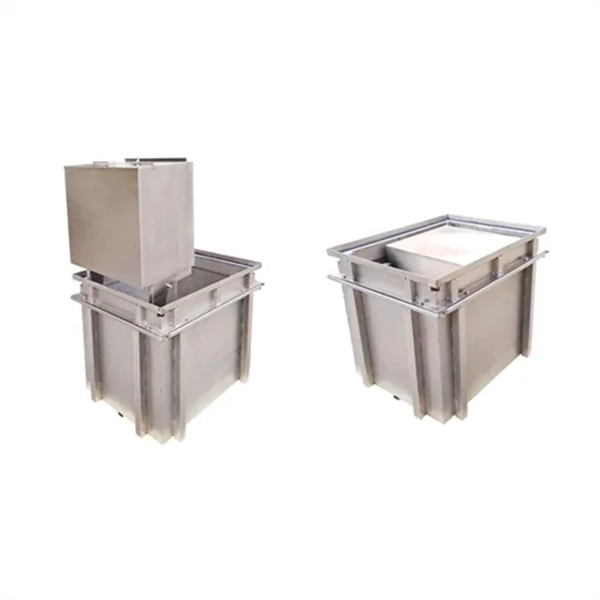

Selection of cables for distribution boxes

Selecting the right cable for a distribution box requires evaluating load, voltage, insulation, environmental conditions, and installation method to ensure safety, reliability, and compliance with standards.

Step 1: Determine Electrical Load and Voltage Class

Begin by assessing the load current that the distribution box will supply. This includes both continuous and peak loads. Confirm the voltage class of the system (low, medium, or high voltage) and ensure the cable insulation is rated accordingly. AC and DC systems have different insulation and thermal stress requirements, so the type of current must be considered during selection .

Step 2: Select Conductor Material and Size

The conductor material (typically copper or aluminum) directly affects current-carrying capacity. Use standardized tables (IEC 60364-5-52, NEC, or BS standards) to determine the base ampacity for the conductor size. Apply derating factors for installation conditions such as ambient temperature, grouping of cables, and thermal insulation to ensure the cable can safely carry the load without overheating .

Step 3: Choose Insulation and Sheath Type

Select insulation based on environmental exposure: moisture, UV, chemicals, abrasion, and temperature extremes. For outdoor or harsh environments, cables with robust insulation and protective sheaths are recommended. Shielding may be necessary for voltages above 2 kV or in areas with high electrical interference .

Step 4: Consider Installation Method

Evaluate how the cable will be installed: in conduits, trays, underground, or overhead. Maintain proper bending radius and pulling tension to avoid mechanical damage. Minimize conduit bends and distances between access points to reduce stress on the cable during installation .

Step 5: Check Voltage Drop and Short-Circuit Ratings

Calculate the voltage drop over the cable length to ensure it remains within acceptable limits for the connected equipment. Verify that the cable can withstand short-circuit currents for the expected duration without insulation failure .

Step 6: Compliance and Lifecycle Considerations

Ensure the selected cable meets national and international standards (IEC, NEC, IEEE 525) and local electrical codes. Consider mechanical durability, maintenance requirements, and lifecycle cost to balance performance with long-term reliability .

Step 7: Final Verification and Documentation

Document the cable selection, including conductor size, insulation type, ampacity, derating factors, and installation method. Conduct inspections and testing after installation to confirm compliance and operational safety .

By following these steps, engineers can select cables that safely and efficiently distribute power, minimize failures, and comply with regulatory standards.
