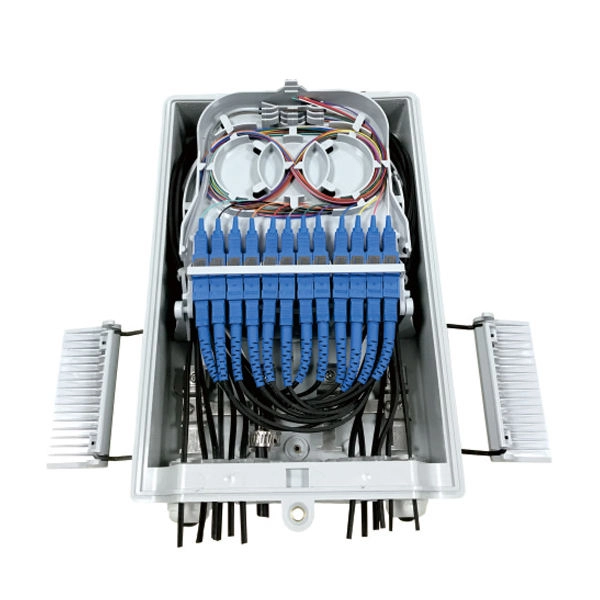

Arrangement sequence of optical cables

Optical fibers should be arranged neatly in bundles following the TIA/EIA-598-C color sequence, routed along designated trays or channels, and secured without crossover or excessive tension.Color Coding and Sequence

For identification and maintenance, optical fibers follow the TIA/EIA-598-C standard. In a 12-fiber system, the sequence is: Blue, Orange, Green, Brown, Slate (Gray), White, Red, Black, Yellow, Violet, Rose (Pink), Aqua (Light Blue). For cables with more than 12 fibers, the sequence repeats in bundles or tubes, and each tube may have its own color coding for easy identification. Ribbon cables also follow this sequence for each ribbon layer, ensuring consistent organization across high-fiber-count cables .

Physical Routing and Bundling

1. Separate from other cables: Optical fibers should not share trays with power or copper cables to prevent interference and physical damage .
2. Use cable trays and channels: Divide cables evenly into left and right trays if connected to a storage device. Route fibers along cabinet posts or through corrugated pipes, cable ladders, or interlayer spaces as needed .
3. Maintain bend radius: Avoid sharp bends, twists, or pinches. Use bend radius control guides to prevent signal degradation or fiber breakage .
4. Bundle neatly: Use fiber binding tape with the mat side contacting the fibers and the hook side outside. Apply appropriate tension—never too tight—to avoid damaging the fibers .
5. Vertical and horizontal management: Use vertical channels on rack sides to segregate bundles and horizontal organizers like cable bars or panels to route fibers across equipment, maintaining airflow and accessibility .

Best Practices

• Inspect and clean connectors before installation to prevent attenuation loss .
• Avoid pulling on connectors; use proper pulling grips for pre-connected cables .
• Label bundles and individual fibers according to the color code for easy troubleshooting and future expansion .
• Ensure fibers are arranged without crossover and secured at regular intervals to maintain a tidy and safe installation . By following these guidelines, optical fiber cables will be organized, protected, and easily identifiable, ensuring optimal performance and simplified maintenance.
