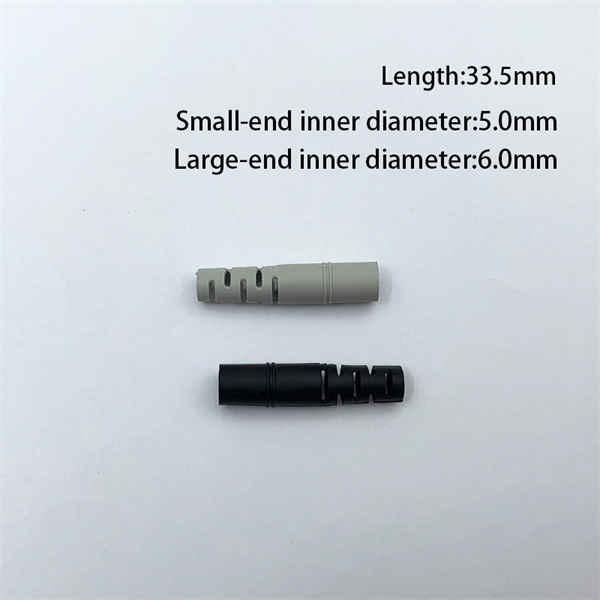

How to connect a 12-core optical cable to 6 boxes

A 12-core optical fiber cable can be connected across six boxes using proper fiber management, splicing, and MPO/MTP pinning methods to maintain polarity and signal integrity.Cable Preparation and Handling

Before installation, ensure the cable is handled carefully to avoid twisting, kinking, or exceeding the minimum bend radius . Lay the cable in a figure-8 or circular pattern to prevent mechanical stress . Use cable lubricants if necessary and leave sufficient slack in each box for future maintenance or re-splicing . Avoid placing the cable near power lines or high-temperature sources to prevent damage .

Fiber Color Coding and Organization

Follow the TIA-598 color standard for 12-core cables to identify each fiber correctly . This ensures that the transmitting fiber at one end matches the receiving fiber at the other end. Typically, fibers are numbered 1–12, and each color corresponds to a specific fiber for easy identification during splicing and connection.

Splicing and Connection in Boxes

1. Splice Preparation: Strip the outer jacket carefully and clean the fibers. Use splice protectors to secure each fiber .
2. Box Layout: In each of the six boxes, organize fibers in trays or holders to prevent bending below the minimum radius. Leave extra fiber in loops or figure-8s for future adjustments .
3. Splicing: Use fusion splicing for permanent connections or mechanical splicing if temporary. Ensure that each fiber is connected to the correct corresponding fiber in the next box to maintain signal continuity .

MPO/MTP Pinning Methods

For high-density connections, MPO/MTP connectors can be used. There are three main pinning methods for 12-strand cables:

• Method A (Straight-through): Pin 1 to Pin 1, commonly used for most installations .
• Method B (Crossover): Pin 1 to Pin 12, often used in 10G–40G applications .
• Method C (Flipped pairs): Pin 1 to Pin 2, used for certain backbone connections . Choose the method consistently across all six boxes to maintain proper polarity. For 12-core cables, ensure an odd number of flips if required by the application to align transmit and receive fibers correctly .

Final Checks

• Verify that all fibers are clean and free of debris before connecting .
• Ensure that excess cable is secured with ties or trays without exceeding bend limits .
• Test each fiber for continuity and signal loss after installation to confirm proper connections. By following these steps, a 12-core optical cable can be reliably connected across six boxes while maintaining signal integrity, proper polarity, and future serviceability.
