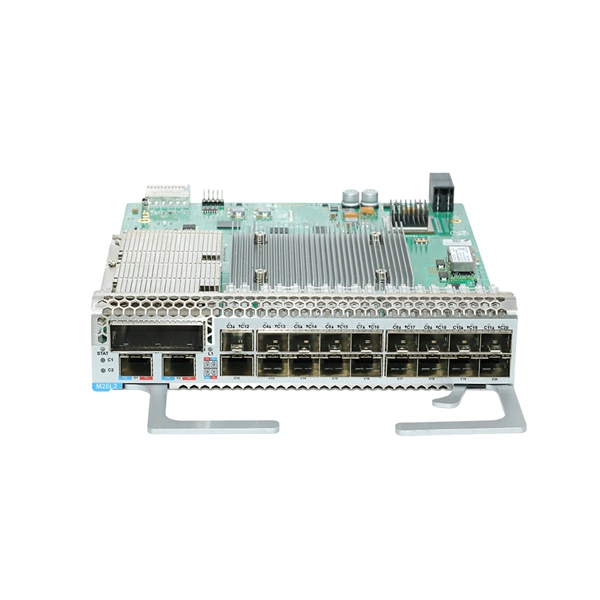

Connect two switches to the optical port

Yes, two switches can be connected using optical ports, typically through SFP or SFP+ transceivers and fiber optic cables.How It Works

Switches with fiber ports can be directly connected using SFP (1 Gbps) or SFP+ (10 Gbps) modules along with the appropriate fiber optic cables. This connection is often referred to as a cascade or uplink connection, allowing devices on one switch to communicate with devices on the other switch . Fiber connections are ideal for long distances, high bandwidth, and secure data transmission .

Key Considerations

When connecting switches via optical ports, ensure the following:

• Fiber Type: Determine whether the switches require single-mode or multi-mode fiber based on distance and transceiver compatibility . Single-mode is preferred for longer distances and higher bandwidth.
• Wavelength Compatibility: The SFP modules on both switches must operate at the same wavelength, especially for single-fiber modules .
• Optical Power and Sensitivity: Ensure the transceivers' optical power and sensitivity are compatible to maintain a stable link .
• Port Speed and Duplex Mode: Both switches should support the same port rate (1 Gbps, 10 Gbps, etc.) and duplex mode .
• Distance: Verify that the fiber cable length does not exceed the maximum supported distance for the chosen fiber type and SFP module .

Practical Setup

1. Insert compatible SFP or SFP+ transceivers into the fiber ports of both switches.
2. Connect the switches using the appropriate LC-LC or SC-SC fiber patch cable .
3. Configure the interfaces if necessary. On some switches, you may need to enable the interface (e.g., no shutdown on Cisco switches) to activate the link .
4. For redundancy and higher throughput, consider using two fiber connections in an EtherChannel configuration to prevent network loops and provide failover .

Network Topology

Fiber connections can be used in star, bus, or daisy-chain topologies depending on network design. Star topology is common in campus networks, where multiple switches connect to a central switch for better performance and management .

Advantages

• Supports high-speed data transfer over long distances.
• Reduces electromagnetic interference and improves security.
• Scalable for future network upgrades. By following these guidelines, two switches can be reliably connected via optical ports, providing a high-speed, secure, and scalable network link .
