Wiring an outdoor distribution box requires selecting a weatherproof enclosure, properly grounding it, connecting circuits with correct wire sizes, and ensuring all connections are secure and code-compliant.Step 1: Choose the Right Distribution Box
Select a box rated for outdoor use with an appropriate NEMA or IP rating. For general outdoor applications, a NEMA 3R enclosure protects against rain and ice, while NEMA 4X offers additional protection against dust, hose-directed water, and corrosion . Materials can be UV-resistant plastic for light-duty use or metal (aluminum/stainless steel) for durability and electromagnetic shielding, but metal boxes must be properly grounded .
Step 2: Plan the Circuit and Load
Calculate the total electrical demand of all devices that will be powered from the box, including lights, outlets, and equipment. Ensure the main service panel has sufficient capacity and space for the new circuit breaker. If necessary, install a subpanel to handle higher loads . Each outgoing circuit should have its own breaker or fuse for protection .
Step 3: Prepare the Wiring
Use weatherproof cables rated for outdoor use. For underground runs, follow NEC Table 300.5 for trench depth (typically 24 inches for direct-burial UF-B cable) . For conduit installations, use rigid or flexible conduit with liquid-tight fittings to prevent moisture ingress . Ensure proper wire gauge for the load and breaker size.
Step 4: Grounding and Bonding
All metal enclosures must be bonded to the grounding system. Connect the equipment grounding conductors to the box itself to allow current to safely return to the panel in case of a fault, preventing shock hazards .
Step 5: Make Connections Inside the Box
Inside the box, use listed wire connectors (wire nuts or terminal blocks) to join conductors. Maintain at least 6 inches of free conductor length for safe splicing and future maintenance . Organize wires neatly, and label each circuit for clarity and future troubleshooting .
Step 6: Seal and Protect

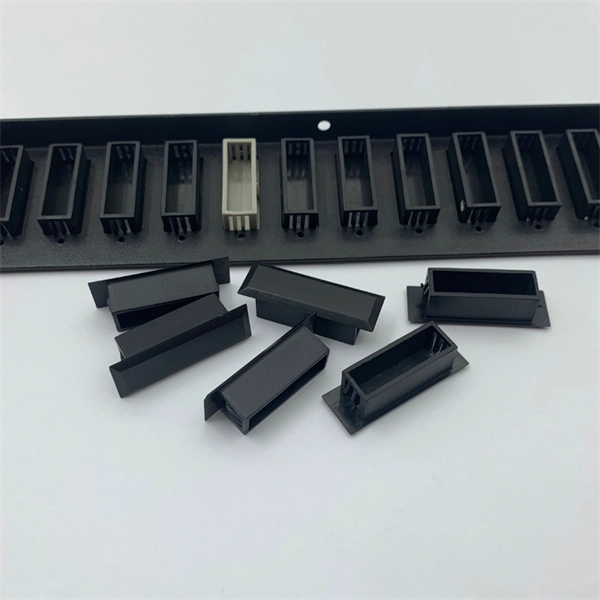

Seal all conduit or cable entry points with glands, cord grips, or compression connectors to maintain the box's ingress protection. Plug any unused knockouts with listed knockout plugs. Ensure the cover gasket is properly seated and the lid is tightly secured to prevent water or debris from entering .
Step 7: Test and Inspect
Before powering on, perform visual inspections and use a multimeter to verify correct connections and grounding. Schedule inspections if required by local codes to ensure compliance .
Safety Tips
- Always turn off power at the breaker before working.
- Wear insulated gloves and safety goggles.
- Avoid working in wet or damp conditions.
- Use UL/CE-certified components and follow NEC or local codes . By following these steps, you can safely wire an outdoor distribution box that is durable, organized, and compliant with electrical standards.
