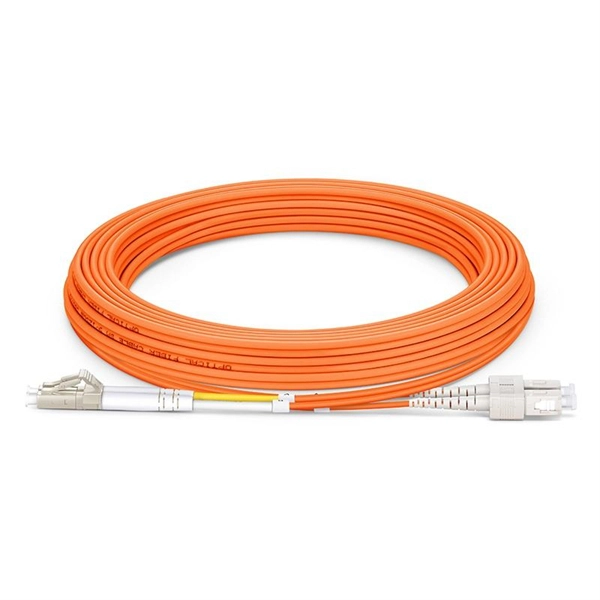

What are the common outer sheaths of optical cables

Fiber optic splice closure knowledge brief Published 06 Dec 2023

Prepared for preliminary research by the RIVO OPTICAL knowledge desk. Confirm cable count, splice capacity, sealing class, tray layout, protection sleeves and installation requirements against current standards and product documentation.

The most common outer sheaths of optical cables include PVC, PE, LSZH, HDPE, LDPE, and specialized materials designed for fire safety or environmental protection.Overview of Common Sheath Materials

1. PVC (Polyvinyl Chloride) PVC is widely used due to its low cost, chemical resistance, and flexibility. It is suitable for general indoor applications and offers moderate flame retardancy. However, PVC produces dense smoke and toxic gases when burned, making it less ideal for environments where fire safety is critical . 2. PE (Polyethylene) PE sheaths are odorless, non-toxic, and highly resistant to low temperatures, chemicals, and UV radiation, making them ideal for outdoor installations. Variants include MDPE (medium density) and HDPE (high density), with HDPE providing superior toughness and long-term outdoor durability . 3. LSZH (Low Smoke Zero Halogen) LSZH sheaths are designed for fire safety, producing minimal smoke and no halogen gases during combustion. They are commonly used indoors, in data centers, and in areas with strict fire codes. LSZH materials often contain inorganic fillers like aluminum hydroxide to enhance flame retardancy . 4. HDPE (High-Density Polyethylene) HDPE is rigid, tough, and highly resistant to weathering, making it suitable for outdoor feeder and distribution cables. It provides excellent protection against UV exposure and mechanical stress . 5. LDPE (Low-Density Polyethylene) LDPE offers greater flexibility than HDPE and is sometimes used where moderate outdoor exposure is expected. It is less durable in harsh environments but easier to handle during installation . 6. Specialized Sheaths Other sheath types include PVDF, Plenum, Riser, Polyurethane (PU), and rodent-resistant materials. These are selected based on specific environmental or mechanical requirements, such as chemical resistance, underwater use, or protection against physical damage .

Selection Considerations
  • Indoor vs. Outdoor: LSZH is preferred indoors for fire safety, while PE and HDPE are preferred outdoors for UV and weather resistance.
  • Fire Safety: Flame-retardant ratings (e.g., OFNP, OFNR) are important for compliance with building codes.
  • Mechanical Protection: Armored cables may require compatible sheath materials to protect against physical damage.
  • Environmental Resistance: Chemical exposure, moisture, and temperature extremes influence sheath choice . Choosing the appropriate outer sheath ensures durability, safety, and optimal performance of optical cables in their intended environment.
