How to connect 5 fiber optic cables to a patch panel

To connect five fiber optic cables to a patch panel, prepare the cables, terminate each fiber with the appropriate connector, route them into the panel, and test for signal integrity.Step 1: Gather Tools and Equipment

You will need a fiber optic patch panel, the five fiber optic cables, compatible connectors (LC, SC, ST, etc.), a fiber optic stripper, cleaver, epoxy or mechanical connector kits, cable ties, a light source, and a power meter for testing ( ).

Step 2: Prepare the Patch Panel

Remove the protective cover from the patch panel and inspect the ports for cleanliness. Ensure the panel is mounted securely, either on a rack or DIN rail, depending on your installation type ( ).

Step 3: Strip and Clean the Fiber Cables

Use a fiber optic stripper to remove the outer jacket of each cable, leaving the inner coating intact to protect the fibers. Clean the exposed fibers with a lint-free cloth to remove dust or debris. Cleave the fibers to the proper length for connector installation ( ).

Step 4: Terminate the Fibers

Choose a termination method based on your patch panel and cable type:

• Direct Termination: Attach connectors directly to each fiber if the panel supports pre-terminated connections. This is suitable for a small number of fibers like five ( ).

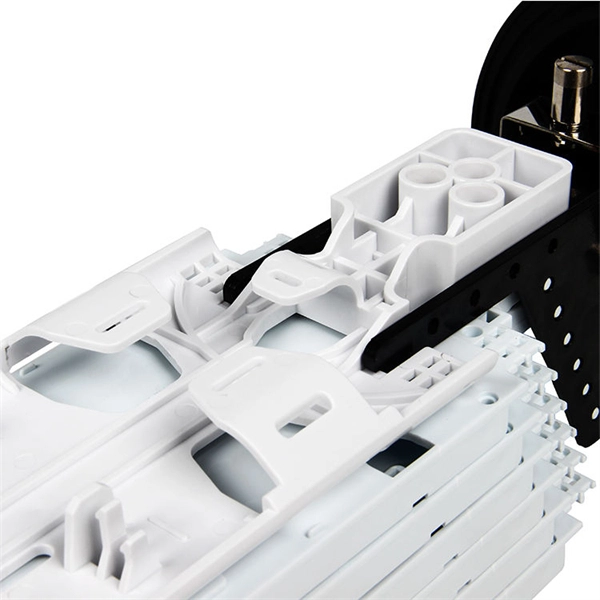

• Fusion Splicing: Use a splice tray to join each fiber to a pre-terminated pigtail connector. This method is faster for field installations and ensures low signal loss ( ). Ensure each connector is properly aligned and locked into place to maintain a stable connection ( ).

Step 5: Route and Secure the Cables

Carefully route the terminated fibers into the patch panel ports. Use cable management tools such as velcro straps or cable guides to prevent tight bends and maintain the minimum bend radius. Label each fiber for easy identification ( ).

Step 6: Test the Connections

After installation, test each fiber using a light source and power meter or an OTDR to verify signal strength and integrity. Check for any breaks, misalignments, or excessive loss ( ).

Step 7: Finalize Installation

Replace the patch panel cover and ensure all cables are neatly organized. Confirm that all five fibers are securely connected and properly labeled for future maintenance ( ). By following these steps, you ensure reliable connectivity, minimal signal loss, and organized cable management for your five fiber optic cables in the patch panel.
