How to bind rigid optical cables

Rigid optical cables should be bound carefully using proper routing, figure-eight coiling, and fiber binding tapes to prevent bending, twisting, or damage.Key Principles for Binding Rigid Optical Cables

1. Maintain Minimum Bend Radius: Rigid optical cables are sensitive to bending. Always respect the minimum bend radius specified by the manufacturer, typically 10 times the cable diameter for static conditions and 20 times during installation under tension. Exceeding this radius can cause fiber deformation or signal attenuation increases . 2. Avoid Sharp Turns and Twists: When routing cables, avoid sharp changes in direction, turn-backs, or pulling over edges. Use smooth curves and, if coiling is necessary, employ a figure-eight pattern to prevent twisting. For rigid cables, figure-eight loops of 2–4 meters are common, while shorter lengths (around 1.5–2.5 meters) may be used for stiffer cables . 3. Use Fiber Binding Tapes: Fiber binding tapes are designed to bundle optical fibers without damaging them. The tape typically has a hook side and a mat side. To bind:

• Arrange fibers neatly into a bundle.
• Cut a piece of tape appropriate for the bundle size.
• Press one end of the tape on the bundle and wrap it around, ensuring the mat side contacts the fibers and the hook side faces outward.

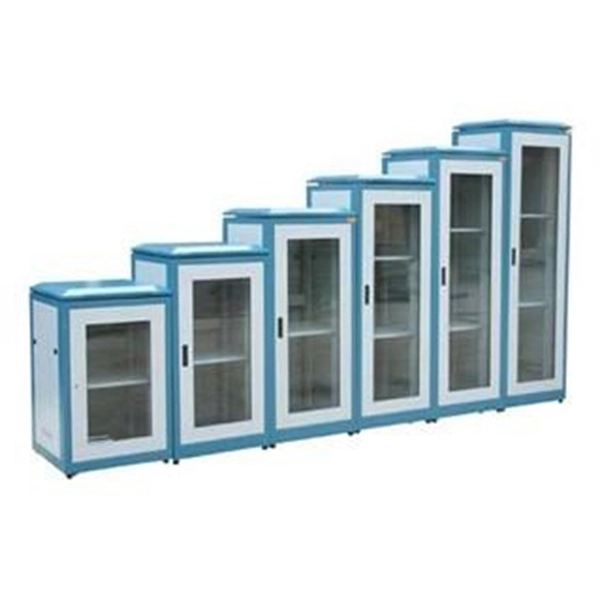

• Stretch the tape slightly to secure the bundle snugly without compressing the fibers . 4. Proper Routing in Cabinets or Trays: When binding cables in cabinets or trays, divide the cables evenly and route them along the sides of the cabinet. Avoid crossing cables and ensure they are supported by trays or ladders if the distance exceeds 0.8 meters. This prevents sagging and mechanical stress . 5. Protect During Installation: Rigid cables should be protected from mechanical stress, crush, or sharp objects. Use protective sheaths, avoid excessive pulling tension (typically not exceeding 600 lbf for loose tube or ribbon cables), and employ swivels to prevent twist accumulation during pulling . 6. Coiling and Storage: If unreeled on the surface, use figure-eight coiling to prevent kinks. For rigid cables, loops should be larger to accommodate stiffness, and traffic cones or barricades can guide safe handling . By following these steps—respecting bend radius, using figure-eight coiling, applying fiber binding tape correctly, and routing cables properly—you can safely bind rigid optical cables while maintaining their performance and longevity.
