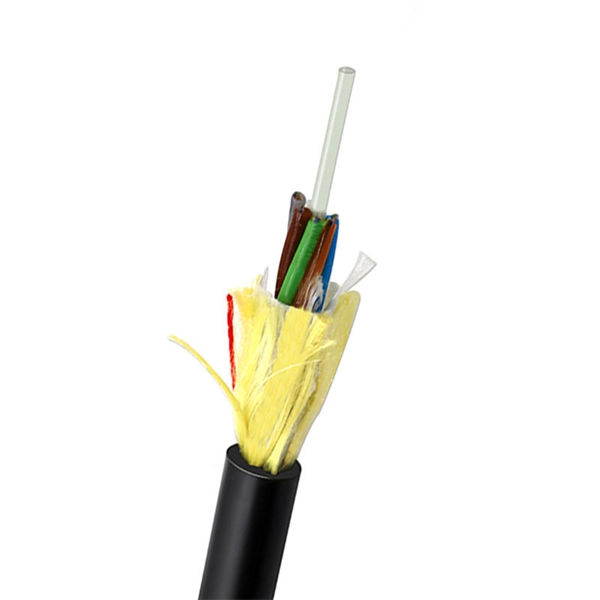

Differences in Optical Module Modes

Fiber optic splice closure knowledge brief Published 20 Aug 2021

Prepared for preliminary research by the RIVO OPTICAL knowledge desk. Confirm cable count, splice capacity, sealing class, tray layout, protection sleeves and installation requirements against current standards and product documentation.

Optical modules operate in different modes, primarily distinguished as single-mode and multi-mode, with variations in modulation, wavelength, and form factor for specific applications.Single-Mode vs. Multi-Mode

Single-mode optical modules transmit light through a single optical path, typically using wavelengths of 1310 nm or 1550 nm, and are optimized for long-distance transmission such as LR (Long Reach), ER (Extended Reach), and ZR (Ultra-Long Reach) applications. They minimize intermodal dispersion, allowing signals to travel over tens to hundreds of kilometers . Multi-mode optical modules use multiple light paths within the fiber, generally at 850 nm, and are suitable for short-distance transmission (less than 2 km). Multi-mode modules are cost-effective for data centers and local area networks but suffer from intermodal dispersion, limiting their range .

Modulation Techniques

Optical modules employ various modulation methods to encode data onto light signals:

  • On-Off Keying (NRZ): The simplest form, representing binary data by turning the light on or off .
  • Pulse-Amplitude Modulation (PAM-4): Encodes two bits per symbol, increasing data rates without increasing bandwidth .
  • Coherent Modulation: Advanced techniques like DP-QPSK and QAM-16 are used in high-speed, long-haul networks, often with tunable lasers for wavelength flexibility .
Form Factors and Interfaces

Optical modules come in pluggable and embedded forms:

  • Pluggable modules (hot-swappable) include SFP, SFP+, QSFP, QSFP+, and CXP, allowing easy insertion and removal without shutting down devices .
  • Embedded modules are permanently attached and include enhanced versions of SFP and QSFP for high-speed or long-distance applications . The form factor determines the module's size, compatibility, and application range, with SFP and QSFP used for small to medium reach, and CXP for high-speed, long-distance links .
Wavelength-Division Multiplexing (WDM)

Some optical modules support WDM, allowing multiple wavelengths (lambdas) to be transmitted simultaneously:

  • Coarse WDM (CWDM): Fewer channels, lower cost, moderate distance.
  • Dense WDM (DWDM): Many channels, high capacity, long-distance networks .
Summary

Optical modules differ by mode (single vs. multi), modulation technique, wavelength, form factor, and WDM capability. Single-mode modules are ideal for long-distance, high-speed networks, while multi-mode modules suit short-range, cost-sensitive applications. Advanced modulation and WDM support enable high-capacity, flexible optical communication systems .
