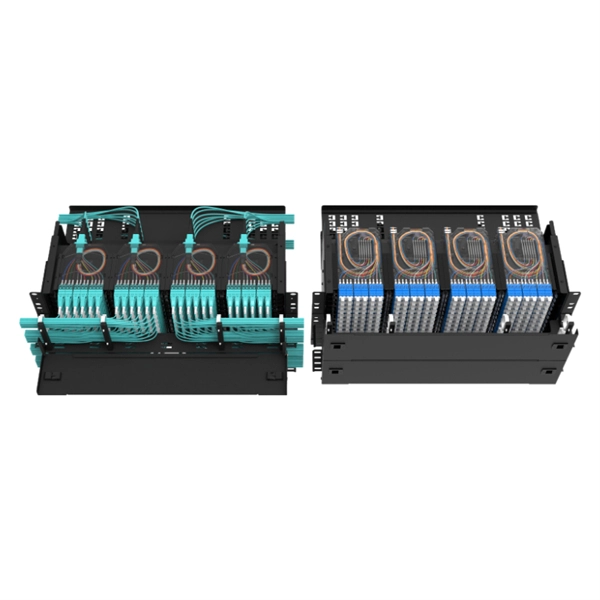

Low Voltage Distribution Box ODF Patch Panel

An Optical Distribution Frame (ODF) is a high-capacity fiber termination and management hub, while a fiber patch panel is a flexible interconnect point for local fiber connections.

Optical Distribution Frame (ODF)

An ODF is a centralized fiber management system designed for terminating, splicing, patching, and distributing fiber optic cables in a secure and organized manner . It is typically installed in telecom central offices, main distribution areas, or large data centers. Key features include:

• High-capacity termination: Supports dozens to hundreds of fiber cores (12, 24, 48, 72, 96, 144, or more)
• Splicing management: Provides trays for fusion splicing and protection of fiber joints
• Cross-connect and distribution: Enables structured interconnection between feeder and distribution cables
• Protection and security: Shields fibers from physical damage and environmental factors
• Scalability: Modular design allows expansion as network demands grow

ODFs are essential for long-distance communication, city telephone networks, and fiber access networks such as FTTH and FTTO, serving as the backbone of fiber distribution . They can be floor-mounted, rack-mounted, or wall-mounted depending on deployment needs.

Fiber Patch Panel

A fiber patch panel is a rack- or wall-mounted device that provides a manageable interface for connecting and organizing fiber optic lines near active network equipment like switches, routers, or servers . Its main functions include:

• Connectorized local termination: Supports SC, LC, MPO, ST, or E2000 connectors
• Moves, Adds & Changes (MAC): Simplifies network reconfiguration without disturbing the backbone
• High port density: Accommodates multiple fiber connections in a compact space
• Cable management: Organizes fibers to prevent tangling and signal loss
• Compatibility with high-speed optics: Supports 10G, 25G, 40G, or higher networks

Patch panels are primarily used in local networks, enterprise LANs, and data centers, providing a flexible point for fiber interconnection and testing. They are not designed for large-scale splicing or long-distance feeder management like ODFs.

Key Differences Between ODF and Fiber Patch PanelFeatureODFFiber Patch PanelPurposeTermination, splicing, distribution, and protection of backbone fibersLocal interconnection and management of fiber lines near active equipmentCapacityHigh (up to hundreds of fibers)Moderate (12–144 ports typically)LocationCentral offices, main distribution areas, meet-me roomsRacks or cabinets near switches, servers, or user endpointsFunctionalitySplicing, cross-connect, protection, integration of passive componentsConnectorized termination, patching, MAC operationsNetwork ScopeLong-distance, large-scale networksLocal networks, data centers, enterprise floorsDesignModular trays, metal frame, high-density adaptersAdapter plates, dust shutters, labeling, cable managementDeployment Scenario

In a typical enterprise or campus network: Carrier fiber enters the building and terminates at an ODF in the main distribution room. From the ODF, trunk cables run to fiber patch panels in intermediate distribution frames (IDFs) on each floor, which then connect to switches or ONTs . This structured approach ensures efficient fiber management, scalability, and protection.

In summary, ODFs serve as the backbone termination and protection hub, while fiber patch panels provide flexible, local connectivity and management. Both are essential for modern low-voltage fiber optic networks, ensuring organized, scalable, and high-performance optical distribution.
